Shop Fox W1849 Resaw Bandsaw

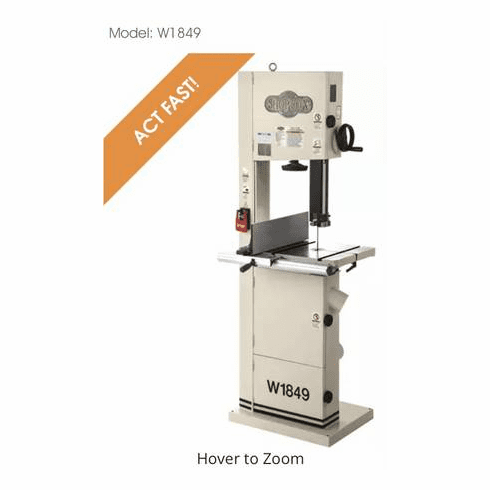

Shop Fox W1849 14" 2 HP Resaw Bandsaw
You can’t go wrong with this award-winning 14" bandsaw.
Versatility, capacity, strength and exceptional value are key components going into the build of this middle-weight workhorse.
The Shop Fox W1849 14" 2 HP Resaw Bandsaw was awarded Top Tool by WOOD Magazine for its performance and combination of features over the competition.
The 2 HP motor powered through 14"-wide cuts–the widest in the test–without bogging down.
The European design elements, such as roller disc blade guides, steel column box-frame with rigid “W” shaped spine, and a hinged blade guard enclosure are the extras that make this saw a pleasure to use.
With the W1849, you won’t pay more for important accessories like the premium, dual-height fence with a hairline indicator scale.
The cast-iron and aluminum extruded fence can be set to the low (1/2") position for close-in detail work, or at 6" for extra support when resawing taller pieces.
A 4" dust-collection port is incorporated at the bottom of the lower wheel cabinet. An additional 4" dust-collection port is used in tandem with dual blade brushes for efficient removal of debris from the blade just below the table.
Add in a storage cabinet for blades, a quick-release blade tension lever, and viewing windows for tracking and blade tension settings, and you’ve got a feature-packed machine with a small footprint and over-sized performance.
For a full range replacement and resaw blades for the W1849, shop here.
The W1849 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your saw.
Made in an ISO 9001 factory
CSA certified
SPECIFICATIONS: Motor: 2 HP, 110V/220V (prewired 110V), single-phase, 19A/9.5A Throat (max. width left of blade): 13-1/2" Resaw height: 14" Blade size: 120" (1/8" to 3/4" widths) Blade speed: 2820 FPM Table size: 21-3/4" x 16-1/8" Table tilt: 5° L, 45° R Floor to table height: 37" Footprint: 23" W x 18" Overall size: 27-1/2" W x 32" D x 76" H Approximate shipping weight: 376 lb. FEATURES: Two-year warranty!! Deluxe 2-height resaw fence and drift bar Computer-balanced cast-iron wheels Blade tension and tracking windows "Euro-style" roller-disc guides Dual 4" dust ports
