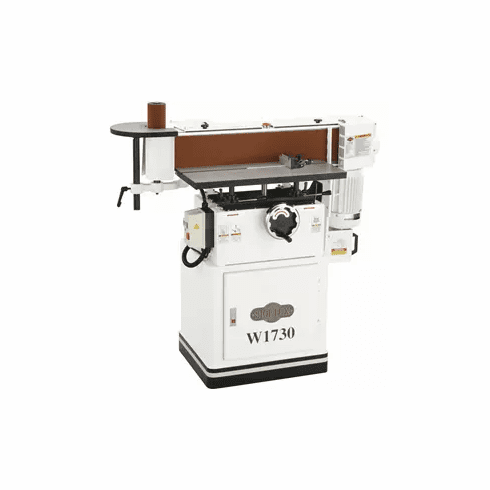

Shop Fox W1730 Oscillating Edge Sander
Shop Fox W1730 Oscillating Edge Sander
Professional-grade edge sanding.
The W1730 Oscillating Edge Sander has a vertically and horizontally adjustable table and a 0°–90° tilting platen for a full range of adjustment for custom applications.
This edge sander has a 2 HP motor, and vertically oscillates the 6" x 89" belt three-quarters of an inch fifty-two times per minute.
The cast-iron auxiliary table provides space for edge sanding as well as spindle sanding with the spindle sanding attachment.
Complementing features to best utilize the adjustment range of the W1730 are a T-slot cast-iron table, a 180° adjustable miter gauge, and a removable fence.
Three non-oscillating spindle sanding drums, measuring 1-1/2", 2", and 3" in diameter are included for sanding smaller contoured surfaces.
Other features include a 180° adjustable miter gauge, two 4" dust ports, powder-coated finish, and a removable fence.
For a full range of replacement 6" x 89" belts for the W1730, shop here.
The W1730 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual provides full instructions on how to assemble and maintain your sander.
CSA and UL certified
SPECIFICATIONS: Motor: 2 HP, 240V, single-phase, 9A Sanding belt size: 6" x 89" Sanding belt speed: 3150 FPM Sanding belt tilt: 0–90° Sanding belt oscillation stroke: 1/4" Table size: 12" x 26-7/8" Table travel: 3-3/4" End table size: 10" x 11-1/2" End table travel: 10" Drive drum diameter: 7" Idler roller diameter: 3-7/8" Platen with graphite pad: 6-3/4" x 30-1/4" Platen tilt: 0°–90° (5° scale) Footprint: 22-1/2" W x 19-1/2" D Overall size: 50-1/2" W x 23" D x 49" H Approximate shipping weight: 443 lbs. FEATURES: Two-year warranty!! Sanding surface tilts vertical to horizontal 3 spindle drums: 1-1/2", 2", 3" x 4-1/2" high Precision-ground cast-iron tables T-Slot table and miter gauge Two 4" dust ports Quick-release belt tension lever Graphite-coated platen Oscillating sanding belt Shielded and permanently lubricated ball bearings
