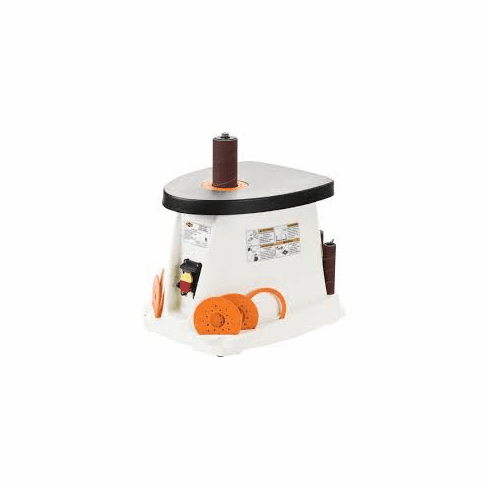

Shop Fox W1831 1/2 HP Benchtop Oscillating Spindle Sander
Shop Fox W1831 1/2 HP Benchtop Oscillating Spindle Sander
Achieve smooth finished edges on curved workpieces.
This Shop Fox W1831 1/2 HP Benchtop Oscillating Spindle Sander is ideal for smoothing edges after being cut with a bandsaw or scroll saw.
Fifty-eight oscillations per minute ensures even sanding of the wood and even wear on the drum.
The machine has neatly organized built-in storage for all of the spindles, sleeves, table inserts, and spindle washers.
Six sanding sleeve diameters let you sand a full range of inside curves down to 1/2-inch diameter. A corresponding insert pairs with each sanding sleeve.
The W1831 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your sander.
CSA certified
SPECIFICATIONS: Motor: 1/2 HP, 120V, single-phase, 3.5A Spindle speed: 2000 RPM Spindle oscillations: 58 SPM Stroke length: 5/8" Sanding drum length: 4-1/2" Table size: 15" L x 11-1/2" W Dust port size: 1-1/2" Overall dimensions: 15-9/16" W x 14-1/8" D x 17" H Approximate shipping weight: 34 lbs. FEATURES: Space-saving benchtop style Locking power switch with removable key Sanding drums store neatly in the base for easy, organized access INCLUDES: 5 rubber sanding drums: 3/4", 1", 1-1/2", 2", 3" 6 sanding sleeves: 1/2", 3/4", 1", 1-1/2", 2", 3" 6 table inserts: 1/2", 3/4", 1", 1-1/2", 2", 3" 3 spindle washers: 5/8", 7/8", 1-3/4"
Fifty-eight oscillations per minute ensures even sanding of the wood and even wear on the drum.
The machine has neatly organized built-in storage for all of the spindles, sleeves, table inserts, and spindle washers.
Six sanding sleeve diameters let you sand a full range of inside curves down to 1/2-inch diameter. A corresponding insert pairs with each sanding sleeve.
The W1831 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your sander.
CSA certified
SPECIFICATIONS: Motor: 1/2 HP, 120V, single-phase, 3.5A Spindle speed: 2000 RPM Spindle oscillations: 58 SPM Stroke length: 5/8" Sanding drum length: 4-1/2" Table size: 15" L x 11-1/2" W Dust port size: 1-1/2" Overall dimensions: 15-9/16" W x 14-1/8" D x 17" H Approximate shipping weight: 34 lbs. FEATURES: Space-saving benchtop style Locking power switch with removable key Sanding drums store neatly in the base for easy, organized access INCLUDES: 5 rubber sanding drums: 3/4", 1", 1-1/2", 2", 3" 6 sanding sleeves: 1/2", 3/4", 1", 1-1/2", 2", 3" 6 table inserts: 1/2", 3/4", 1", 1-1/2", 2", 3" 3 spindle washers: 5/8", 7/8", 1-3/4"
