G1023RLX

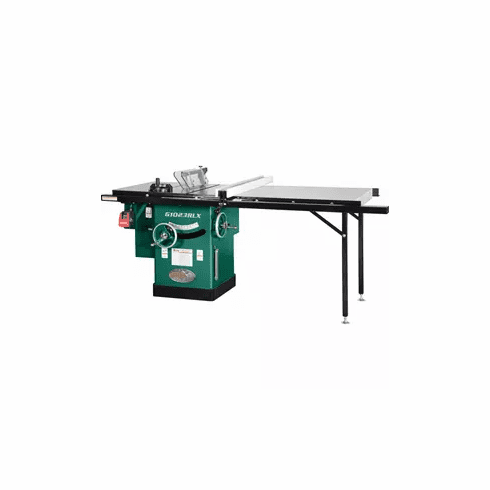

G1023RLX 10" 3 HP 240V Cabinet Table Saw with Extension Table
The saw you want for maximum cutting capacity.
The Grizzly G1023RLX 10" 3 HP 240V Cabinet Table Saw was awarded Top Value by WOOD Magazine for its combination of features including its larger rip capacity, better dust collection, and sturdier table legs than the competition.
Additionally, this machine features a quick-release blade guard, interchangeable riving knife, encapsulated-blade dust extraction and a highly efficient serpentine belt/pulley system that runs much quieter and smoother than its predecessor.
This left-tilting table saw includes the tremendously popular Shop Fox® Classic fence and heavy-duty extension table. Best of all, everything is included for one low price, making this one of the greatest package deals available anywhere.
The G1023RLX manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your saw.
Made in an ISO 9001 factory
CSA certified
SPECIFICATIONS Motor: 3 HP, 240V, single-phase, 14A Rip capacity: 60" right, 14" left of blade Maximum depth of cut @ 90°: 3" Maximum depth of cut @ 45°: 2-1/8" Overall table dimensions: 74" W x 27" D Distance from front of table to center of blade: 17" Distance from front of table to blade at max. cut: 12" Floor-to-table height: 34" Arbor diameter: 5/8" Arbor speed: 4200 RPM Maximum width of dado: 13/16" Dust port size: 4" Overall dimensions: 84" W x 47" D x 40" H Footprint: 20-1/2" x 20-1/2" Overall dimensions: 84" W x 47" D x 40" H Approximate shipping weight: 558 lbs. FEATURES Extra-large 44" x 27" extension table Extra-large handwheels ease arbor movement Quickly changes between riving knife and blade guard Locking magnetic switch includes padlock and key to prevent unauthorized use Large safety STOP paddle One-piece steel cabinet type stand All sealed ball-bearing construction Poly-V serpentine belt transfers power more efficiently and with less noise than standard V-belts Underside of blade encapsulated for superior dust collection 1-year limited warranty
