G0529 Osc. Spindle Sander

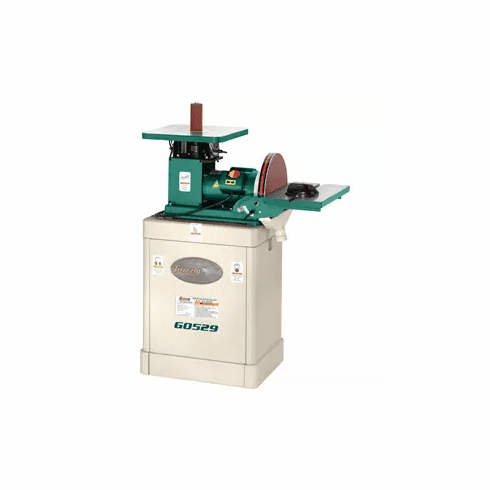

G0529 Oscillating Spindle / 12" Disc Sander
The precision of an oscillating spindle sander and a 12" disc sander for the most useful combination sander on the market today.
The oscillating spindle of the G0529 features 4 spindle sizes, which utilize sleeves of sandpaper for easy changing, availability, and low cost.
The direct-drive 1725 RPM, disc sander yields excellent control without burning the workpiece.
With dual tilting cast-iron tables, this combination Oscillating Spindle/12" Disc Sander does it all! Replacement PSA sanding discs are available in a variety of grits. The replacement sanding sleeves are listed as accessories to the right.
The G0529 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual provides full instructions on how to assemble and maintain your machine.
Made in an ISO 9001 factory
SPECIFICATIONS: Motor: 1 HP, 110V, single-phase, 10A Footprint: 21-1/4" x 16-1/2" Overall dimensions: 32" W x 18" D x 47" H Approximate shipping weight: 181 lbs. Disc Sander Info:
Disc diameter: 12" Disc speed: 1725 RPM Sandpaper backing: PSA Table size: 10" x 17-3/4" Table tilt: 0–45° Table to floor height: 33" Spindle Sander Info:
Drum diameters: 1/4", 5/8", 1-1/2", 2" Drum length: 5-1/2" Spindle speed: 1725 RPM Spindle oscillation: 60 SPM Stroke length: 1" Table size: 14-1/2" x 14-1/2" Table tilt: -10–45° Table to floor height: 42" FEATURES: Includes formed and welded steel stand Lubricated-for-life ball bearings Easy change sandpaper sleeves for spindles Miter gauge Two 2" dust ports Powder-coated finish
