G0610 11 Inch Dovetail Machine

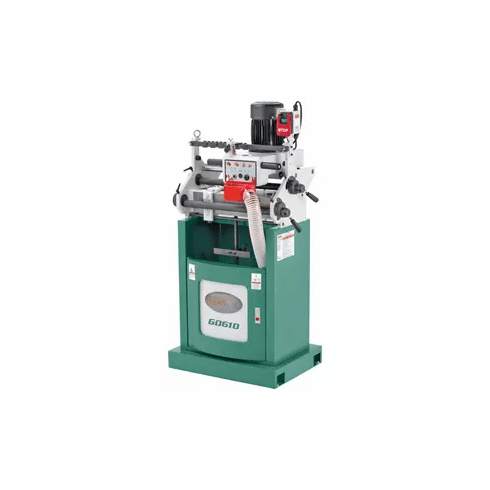

G0610 11-1/4" Dovetail Machine
Make strong and attractive half-blind dovetailed joints faster than you ever thought possible.
The powerful 1 HP induction motor of the G0610 11-1/4" Dovetail Machine makes cutting joints quick while the four-sided template makes it easy to change styles.
Quick cam clamps make for fast changes and having all adjustments clearly described right on the machine insures an easy set-up and adjustment.
Increase your shop's profits by creating your own four-sided drawers in just a few minutes each.
Prewired for 110V, the G0610 can plug into a standard 110V outlet or can be converted to operate on a 220V power supply. If you prefer 220V, refer to the Voltage Conversion instructions in the manual.
Like all Grizzly dovetail machines, the G0610 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.
The G0610 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your bandsaw.
The Grizzly Customer Service and Technical Support Teams are also U.S.-based. Parts for the dovetail machine may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
SPECIFICATIONS: Motor: 1 HP, 110V/220V (prewired 110V), single-phase, 10A/5A Number of spindles: 1 Spindle speed: 18,500 RPM Dovetail bit: 10° x 5/8" long Dovetail shank: 1/2" Maximum dovetail height: 3/4" Minimum dovetail height: 3/16" Maximum thickness: 1-3/4" Minimum thickness: 13/32" Maximum stock size: 11-1/4" W x 28" L Minimum stock size: 2-3/8" W x 7-7/8" L Table size: 19-1/2" x 7" Floor to table height: 38-5/16" Overall size: 30-1/2" W x 22-1/2" D x 57" H Approximate shipping weight: 418 lbs. FEATURES: Precision-ground cast-iron table Cast-aluminum carriage Steel stand Hardened and ground chrome steel slide ways Ball-bearing linear guides Four-way dovetail template Micro-adjustable spindle head Workpiece stops Quick cam clamp 4" dust port Spring-loaded carriage for smooth operation
