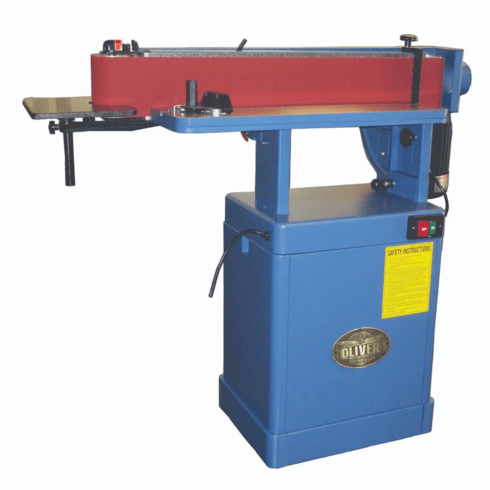

Oliver 6305.001 Edge Sander

Key Features Tilting Platen: Adjusts from 90° to 180°, allowing the belt to operate in horizontal or vertical positions, accommodating various sanding applications Large Sanding Belt: Equipped with a 6" x 89" belt, providing ample surface area for efficient material removal Powerful Motor: Features a 1.5HP TEFC single-phase motor, delivering consistent power for demanding sanding tasks Adjustable Cast Iron Table: Vertically adjustable to fully utilize the sanding belt's surface, enhancing flexibility Graphite-Covered Steel Platen: Reduces friction and heat buildup, prolonging the life of both the platen and sanding belts Efficient Dust Management: Includes a built-in 4" dust port to connect to dust collection systems, maintaining a clean work environment User-Friendly Controls: Industrial push-button controls are strategically located for ease of use during operation Full Cabinet Design: Provides a stable workstation with additional storage space for tools and accessories ​The Oliver Machinery 6" x 89" Edge Sander 1.5HP 1Ph - 6305.001 is a versatile sanding solution, featuring a tilting cast iron table adjustable from 90° to 180°, accommodating horizontal and vertical belt positions. It boasts a powerful 1.5HP TEFC single-phase motor, efficient dust management via a built-in 4" dust port, and user-friendly industrial push-button controls.

Product Specifications Model Number 6305 Stock Number 6305.001 Table Length 27 inches Table Width 10 inches Table Material Precision-ground cast iron Belt Size 6 inches x 89 inches Belt Speed 3,900 feet per minute Front Table Size 27 inches x 9.8 inches Table Tilt 90° to 180° Table Height Adjustment 37.5 inches to 40.5 inches Dust Port Diameter 4 inches Motor 1.5 horsepower, single-phase, 115/220V (prewired for 115V, 18/9 Amp) Overall Dimensions (L x W x H) 48 inches x 21 inches x 48 inches Net Weight 247 pounds Gross Weight 280 pounds
